Product Introduction
Sucetong KS series desktop automatic weighing and measuring volume system integrates barcode, weight, volume information automatic collection and input system, and prints face sheets in real time with printer.
High speed, high efficiency, and small footprint. The system operation is simple and clear, easy to learn and understand, make full use of the generated information resources, reduce the workload of information entry, and reduce the labor intensity of operators.

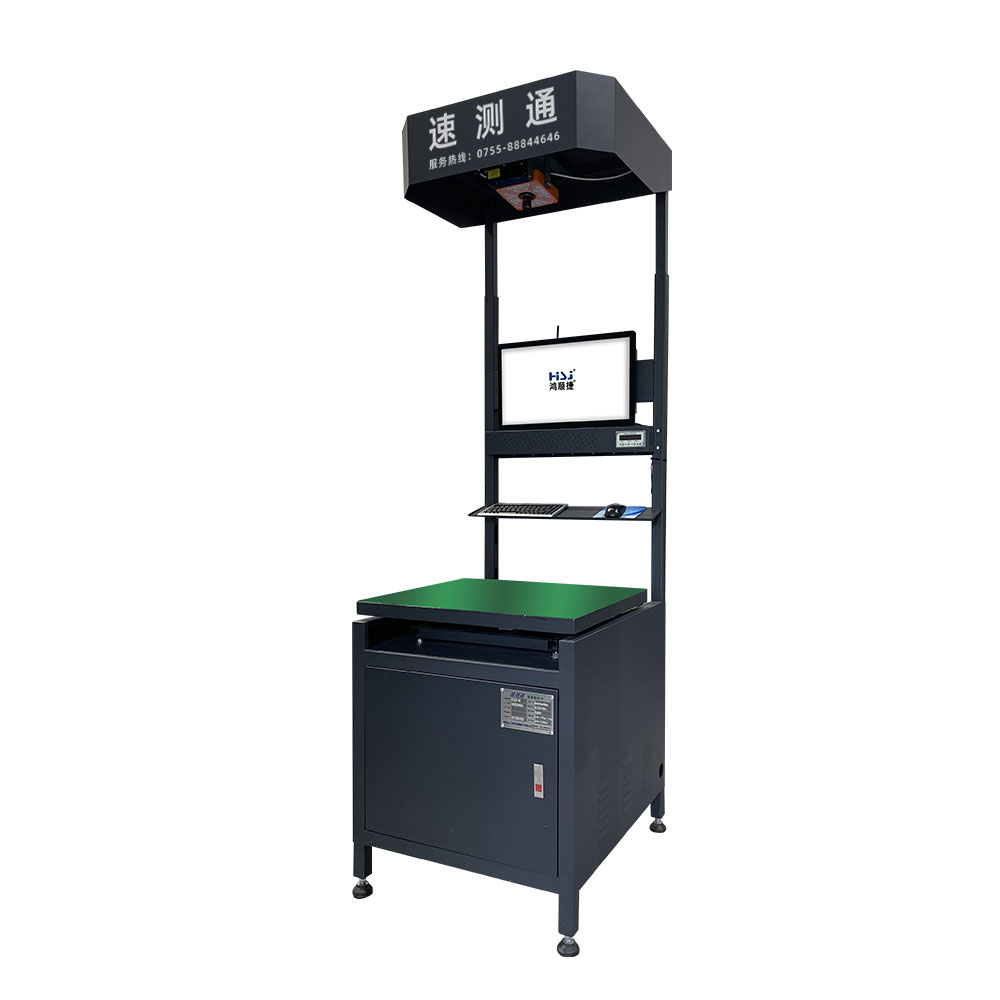

HSJ-Sucetong HSJ-KS03-M desktop automatic weighing and measuring volume system, using industrial 3D camera, industrial pressure sensor, stable, reliable and accurate measurement, can realize barcode scanning, length, width and height volume measurement, weighing of regular and irregular goods , system judgment and data upload and other functions, modular design, small footprint, powerful functions, a powerful assistant for sorting and weighing measurement for logistics enterprises!
Second beat second scan, 3D camera, accurate and efficient, ±1g average measurement accuracy, sorting efficiency of 600-1000 pieces/hour.
Product Features
Function customization and features
Function customization:
According to your needs, you can customize functions such as high-definition pictures, barcode visualization, picture naming, object shape classification, and condition restrictions.
Features:
HSJ-Sucetong-HSJ-KS03-M has the function of 3D package volume detection, the data can be stored immediately after measurement, and the data can be exported at any time, accurate to any time; it is suitable for the measurement of small and medium-sized products, regular/irregular, the workbench can be placed arbitrarily, and can be used for Scenarios such as logistics sorting and factory manufacturing lines.
Product composition:
Integrated welding paint rack, TPC6000-integrated industrial control host (mouse/keyboard/power adapter), one set of Hikvision smart camera, weighing system (one static scale/meter), 1.8M multi-hole socket, 3D visual body measuring camera .

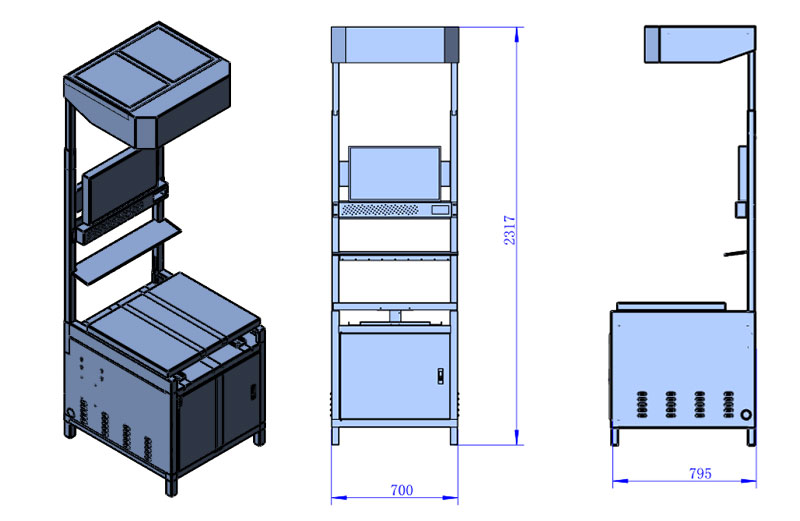

Structure size (can be customized):
Product parameters
| Device name | HSJ-Sucetong-HSJ-KS03-M |
| Scanning equipment | Industrial 3D Smart Camera |
| Measurement principle | Scan code weighing volume DWS (equipped with 3D camera) measurement |
| Measure size | Max 700*600*500MM Min 100*100*10MM |
| Equipment size | 700MM*800MM*2600MM |
| Weight accuracy | ±2g |
| Measuring speed | 600-1000 pieces/hour |
| Data output | Excel/Http/Websocket,Serial port optional (interface RS232) |
| Machine power | 220V 500W |
| Measure weight | 100g~30000g |
| Scan code | Handheld Scan Gun/Industrial Camera(MV-PD010003) |
| Package type | Regular/non-regular/shaped/thin parts |
| Placement requirements | Placement at will |
| Super thin object | Support thin parts measurement |
| Supported formats | Data upload, photo storage, system docking, barcode filtering, exception handling of over-length pieces, network transmission |
| Tape removal | Support |
| System Support | Windows10 |
| Working temperature and humidity | -5~40℃ / 0-80% |
| Multi-language | support multi-language |
After-sales service
| Honorary customer | Yuantong Express, Debon Logistics, Yunda Express, Jingdong Logistics, Export Easy Logistics, Yida International Logistics, etc. |
| Delivery period | About 15 working days for equipment production + software debugging (excluding shipping time and time required for custom hardware) |
| Warranty time | 1. If the main unit of the product has a performance failure due to non-human damage, seven-day free return, replacement, and warranty; 15-day free replacement and warranty; one-year warranty; 2. The product software has a performance failure due to non-human damage, and the product will be delivered for free within one year. Update the product system software; 3. Within the scope of the warranty, if the whole machine is replaced (excluding accessories), the warranty period of the replaced product will be recalculated according to the Three Guarantees Law; 4. Gifts and accessories do not participate in the warranty; |
| After-sale warranty | If the customer finds a problem, the on-site personnel can feedback the problem to the person in charge of the project in the computer department, and then the person in charge will contact our technical staff. We will give you a reply within four hours and deal with it within 48 hours (48 hours is in Shenzhen. In the urban area, other areas will be processed within 54 hours) Open 24-hour after-sales service hotline: +86-13316986889 |
